2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner

MOQ:	1Set
Price:	USD94,000-97,000/set
Standardverpackung:	Container
Lieferfrist:	15-35 Tage
Zahlungsmethode:	L/c, t/t
Lieferkapazität:	10Sets/Monat

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort

CHINA

Markenname

HANYU

Zertifizierung

ISO9001

Modellnummer

Ty2x70iv

Hydraulik -Elektrokabelspanner

Bullenraddurchmesser:

1500 mm

Maxe Rückzugsgeschwindigkeit maximal:

5 km/h

Rillennummer:

Maximale intermittierende Spannung:

2x70/1x140kN

Maximale kontinuierliche Spannung:

2x65/1x130kN

Hervorheben:

hydraulic electric cable tensioner

transmission line stringing equipment

70KN cable tensioner with warranty

Produkt-Beschreibung

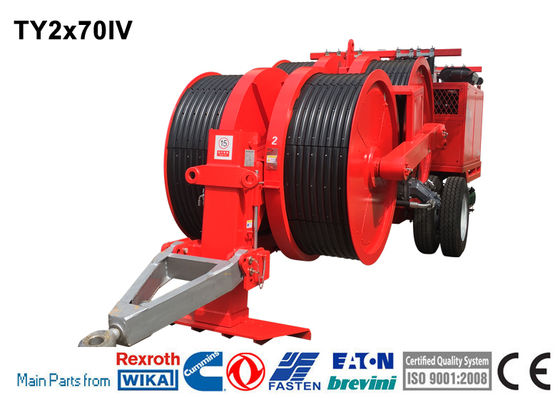

2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner

TY2x70IV Hydraulic Tensioner	The machine allows for the tension stringing of four-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1500mm Max conductor diameter: 40mm Groove number: 2x8 Total weight: 12000kg Overall dimension (lengthwidthheight):550022802700mm
Performance	Max intermittent tension: 2x70/1x140kN Max continuous tension: 2x65/1x130kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x25/1x50kN Max reverse pulling force: 260kN/1120kN Max reverse pulling speed: 5km/h
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.
Configuration	2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Hydraulic front stabilizer Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor Grounding connection point
Additional Devices	Lighting system for the trailer 4 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Air brake system for the trailer (extra charge) Digital Speed and meter counter

2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner 0
